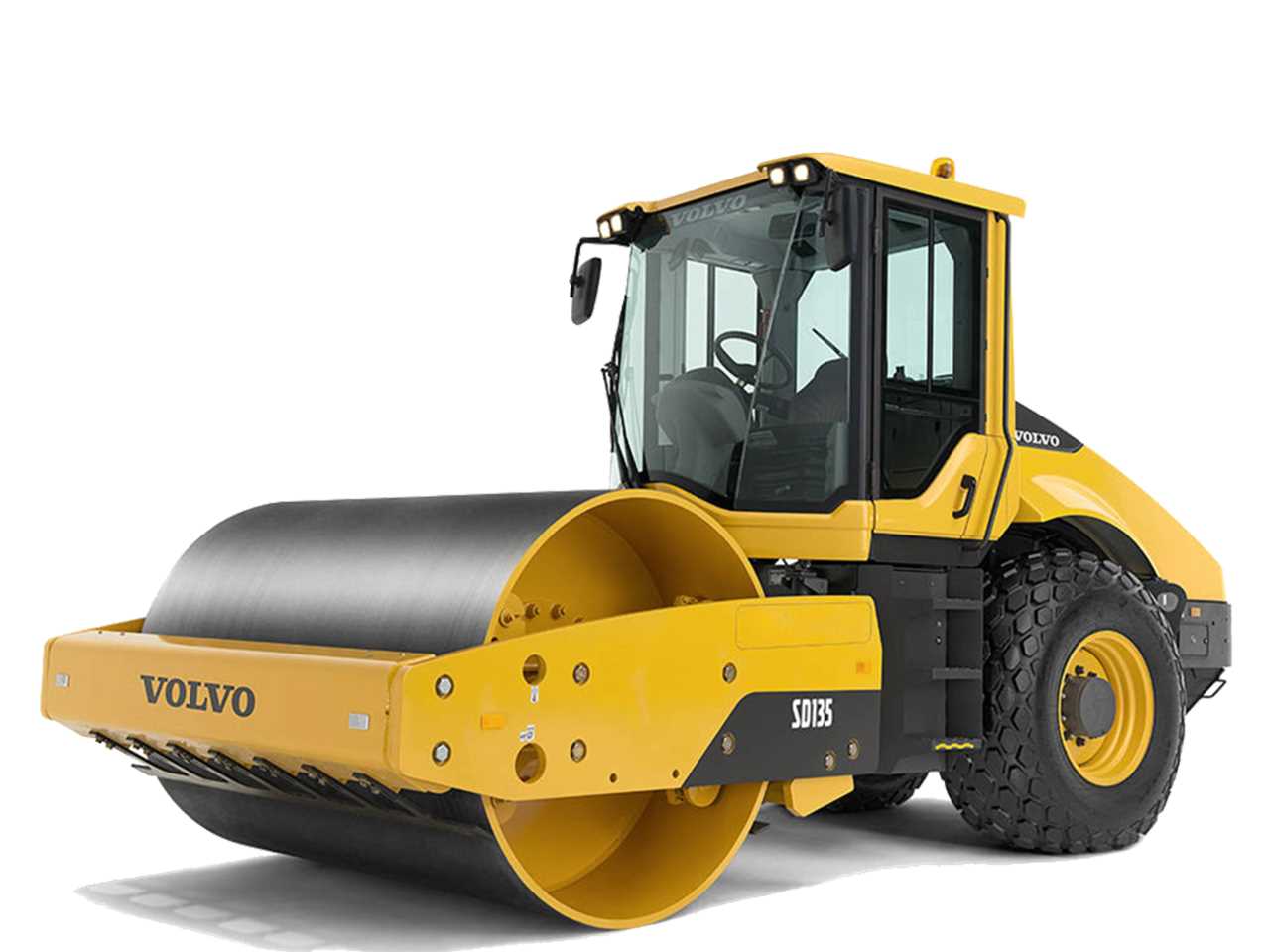

Volvo Soil Compactor SD135

  • Operating Weight13656 kg
  • Horse Power147.5 hp
  • KW110 kW

Please note: all fields are required to enable your query to be directed to your local TDX expert. Cancel

Contact details:
Your query:

Description - Volvo Soil Compactor SD135

The Volvo SD135 soil compactor delivers powerful and efficient compaction. Capitalize on Volvo’s smart power mode and benefit from a 30% reduction in fuel consumption. The high performance, premium Volvo engine supplies all the power you need to compact thick lifts and the most difficult materials. Reduce fuel consumption and save money with Volvo.


Specifications - Volvo Soil Compactor SD135

Operating weight (with ROPS) 13,656 kg
Operating weight (with ROPS, inc. Cab & inside scraper) 13,656 kg
Centrifugal force 206/281 kN
Vibration frequency 31/34 hz
Optional 5x frequency (High Amplitude) 23/31 hz
Gradeability 65 %
Rated engine power 110 kW
Amplitude 1.9/1.17 mm
Drum width 2,134 mm
Articulation angle +/-38 degree
Oscillation angle +/-17 degree
