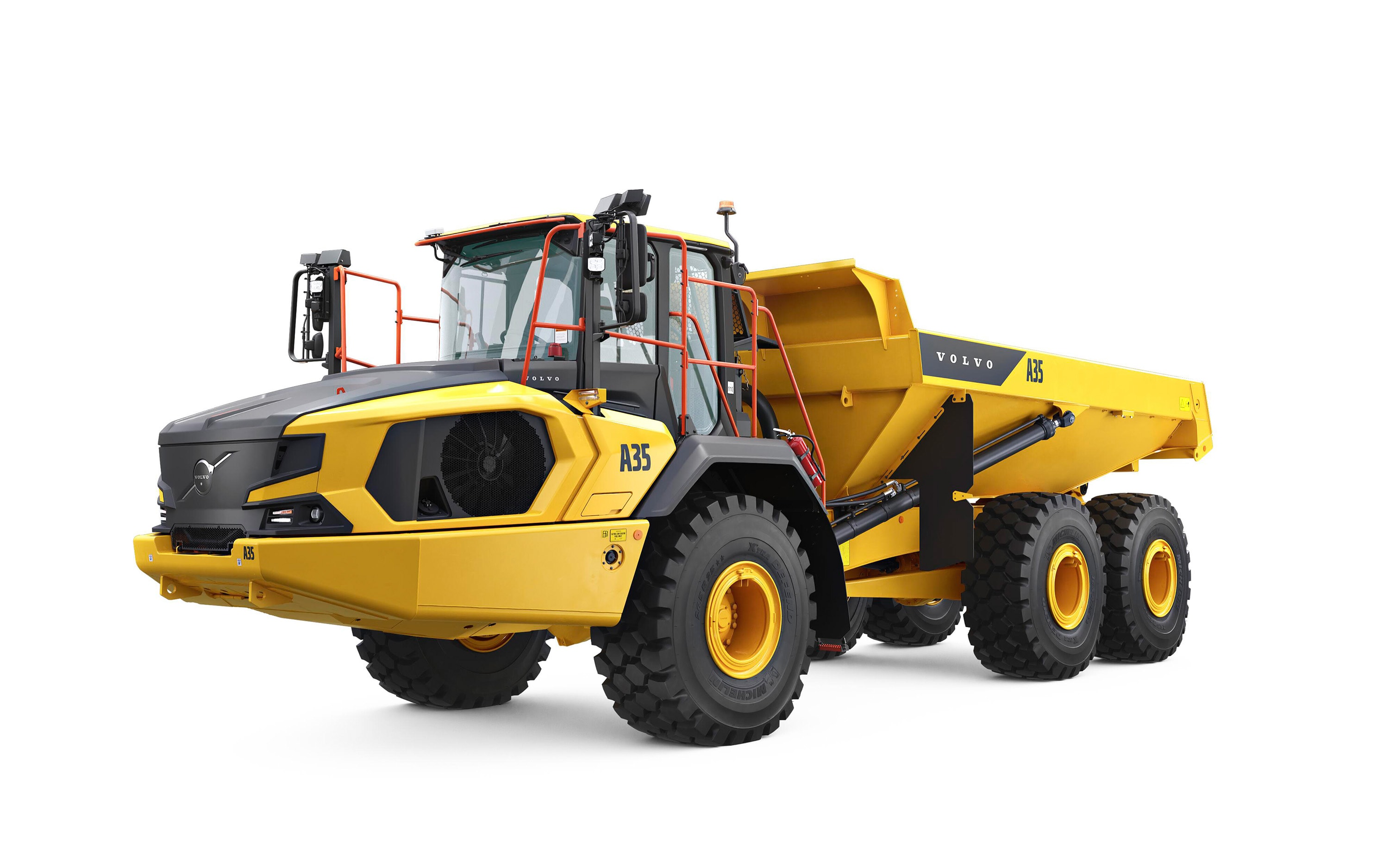

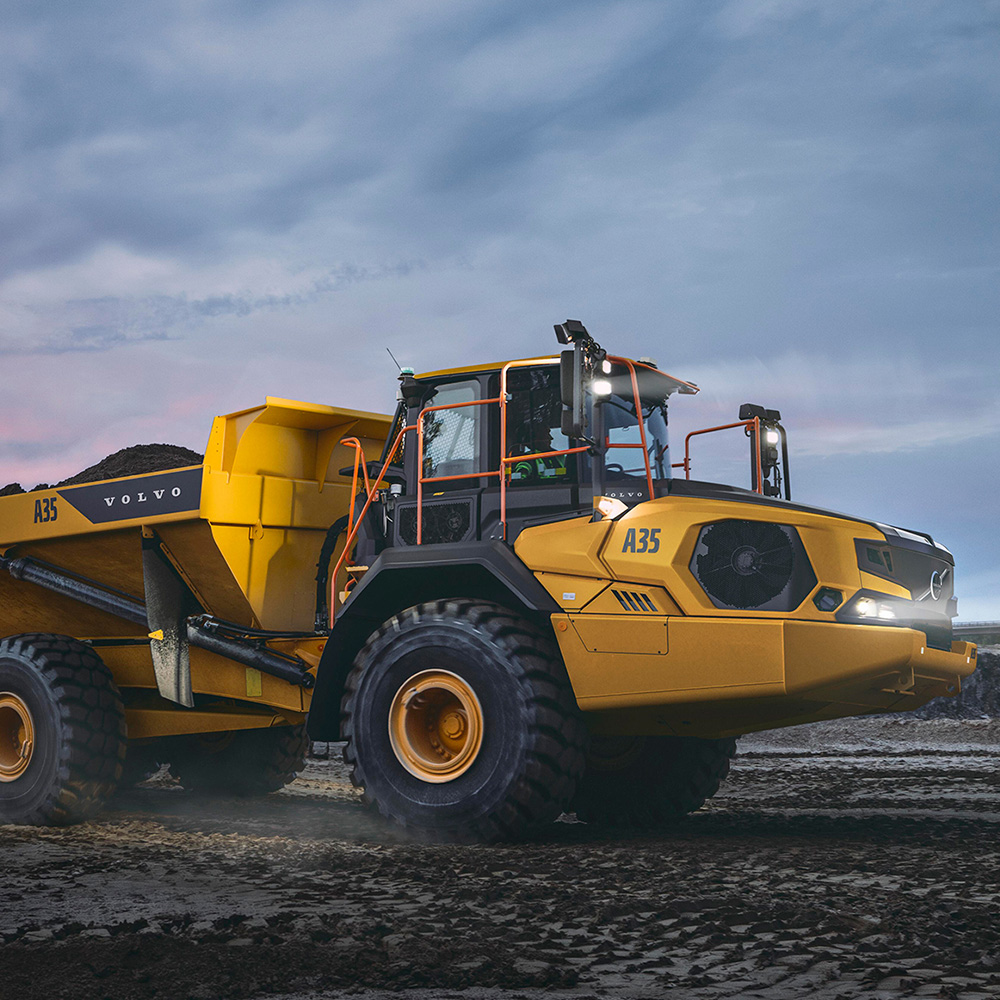

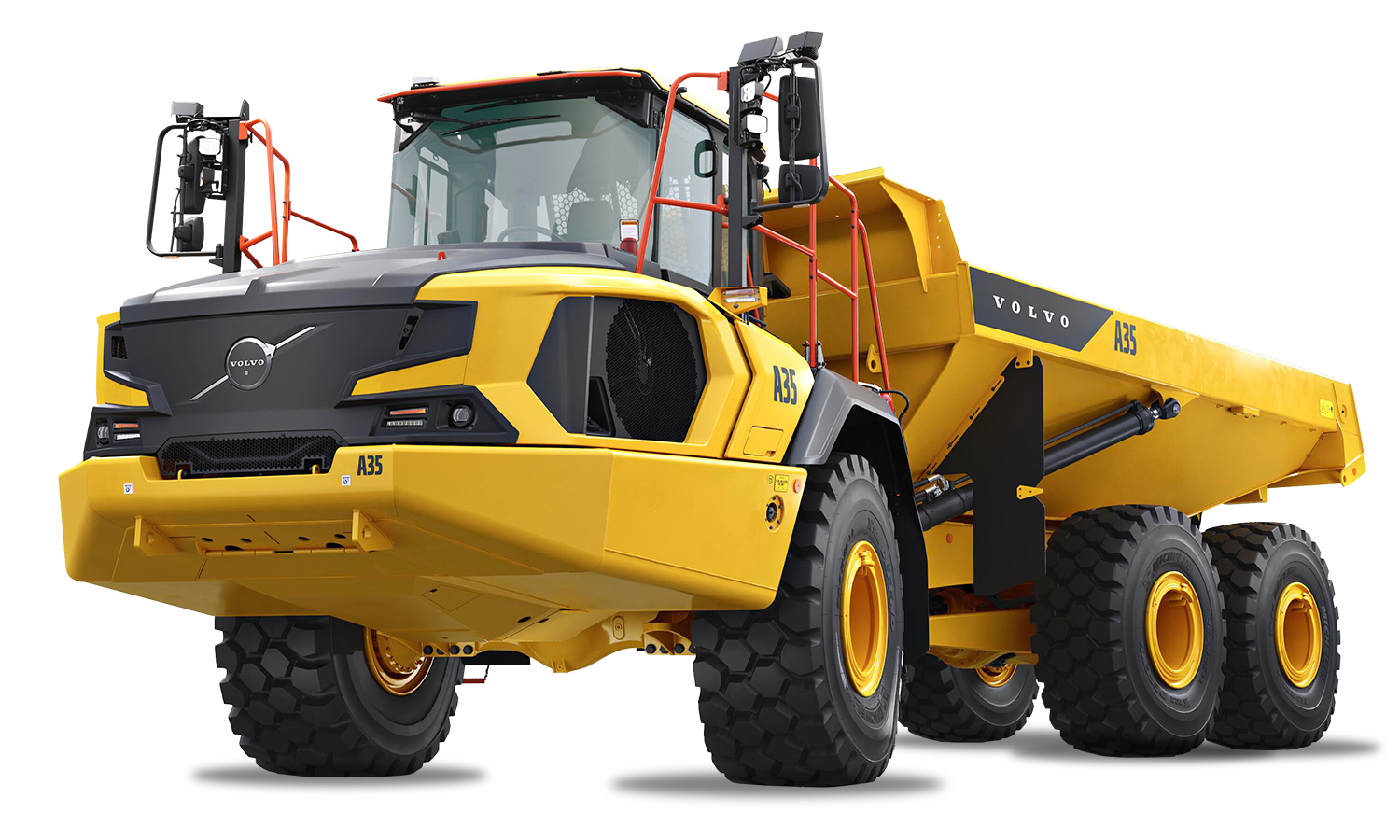

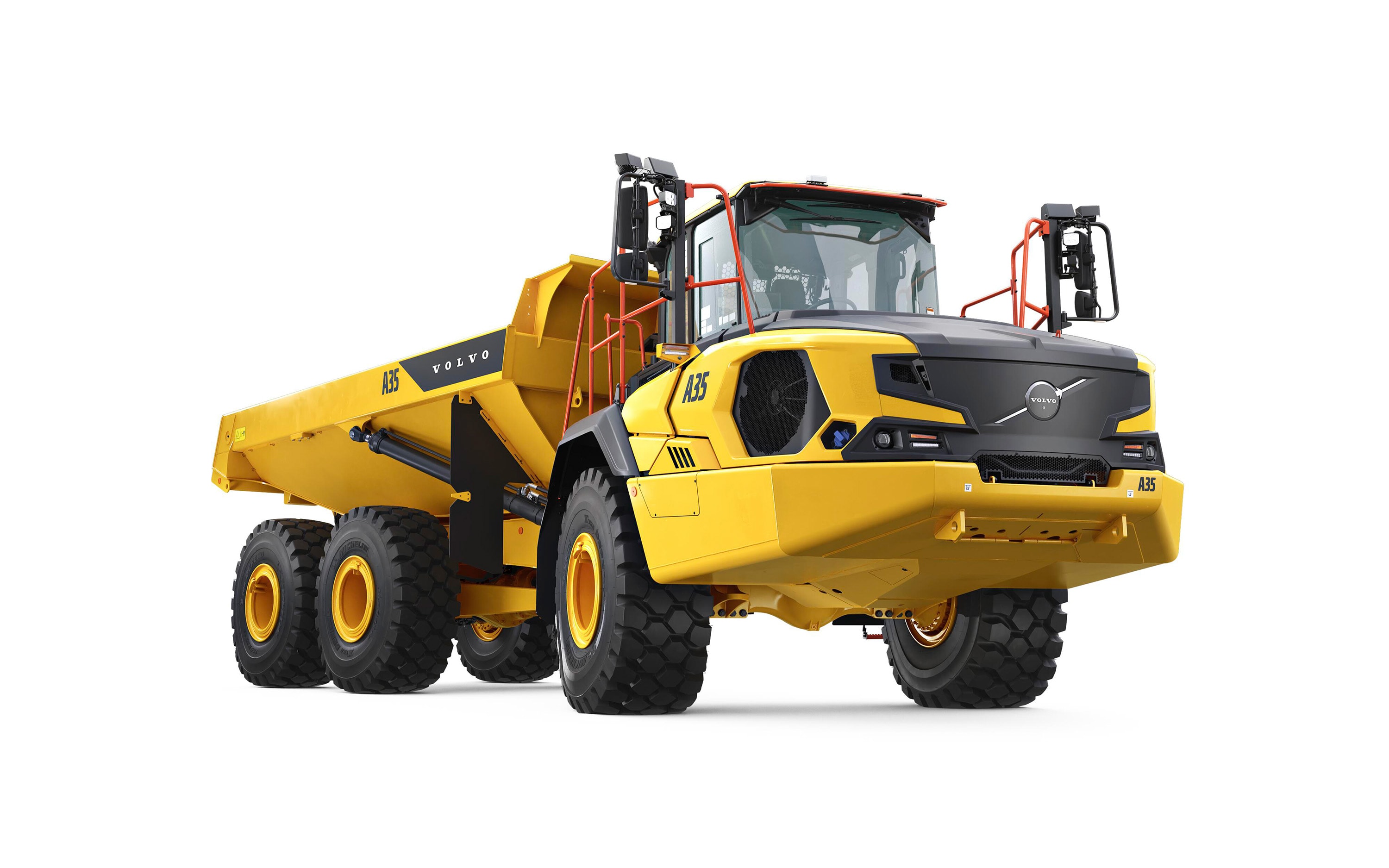

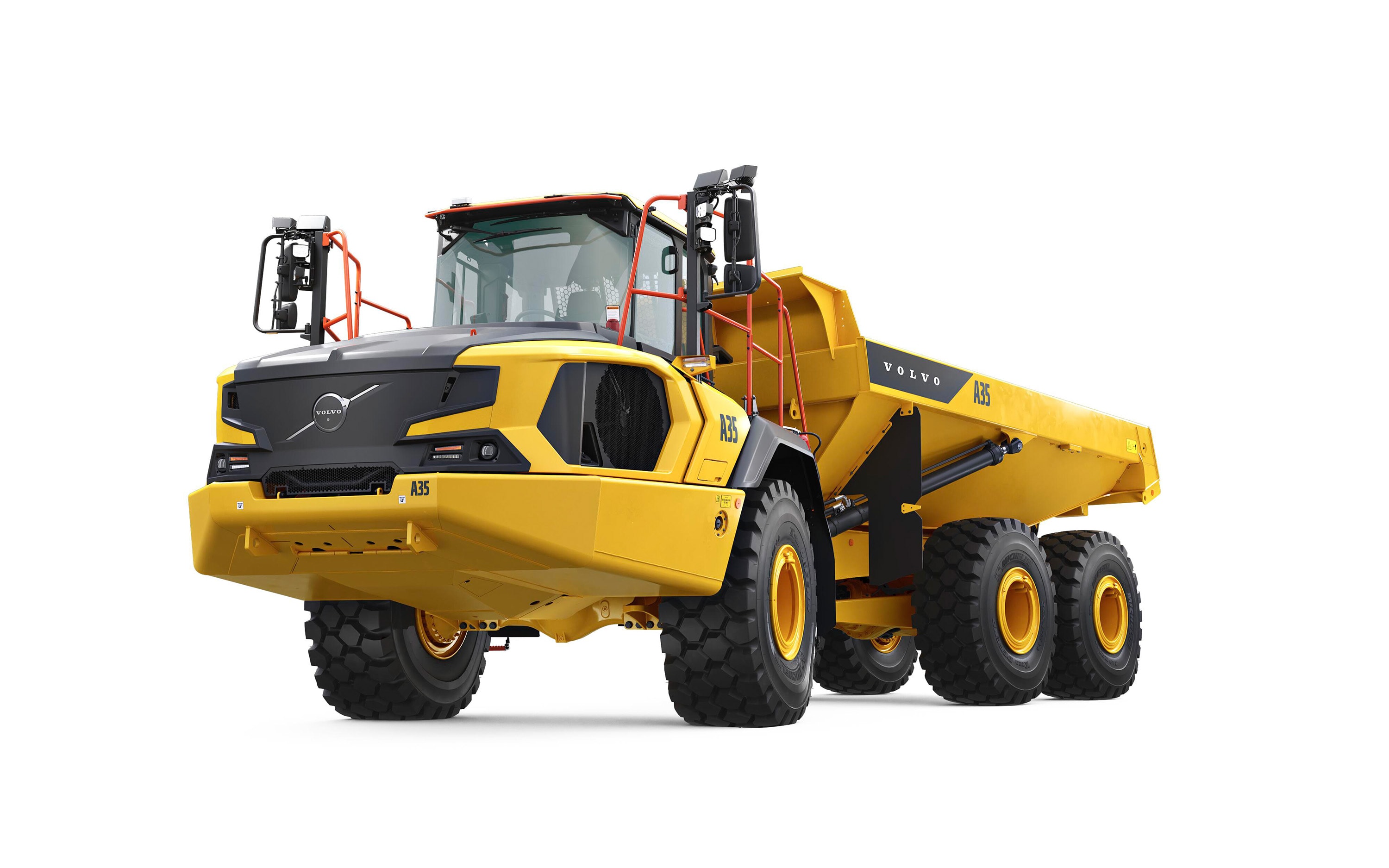

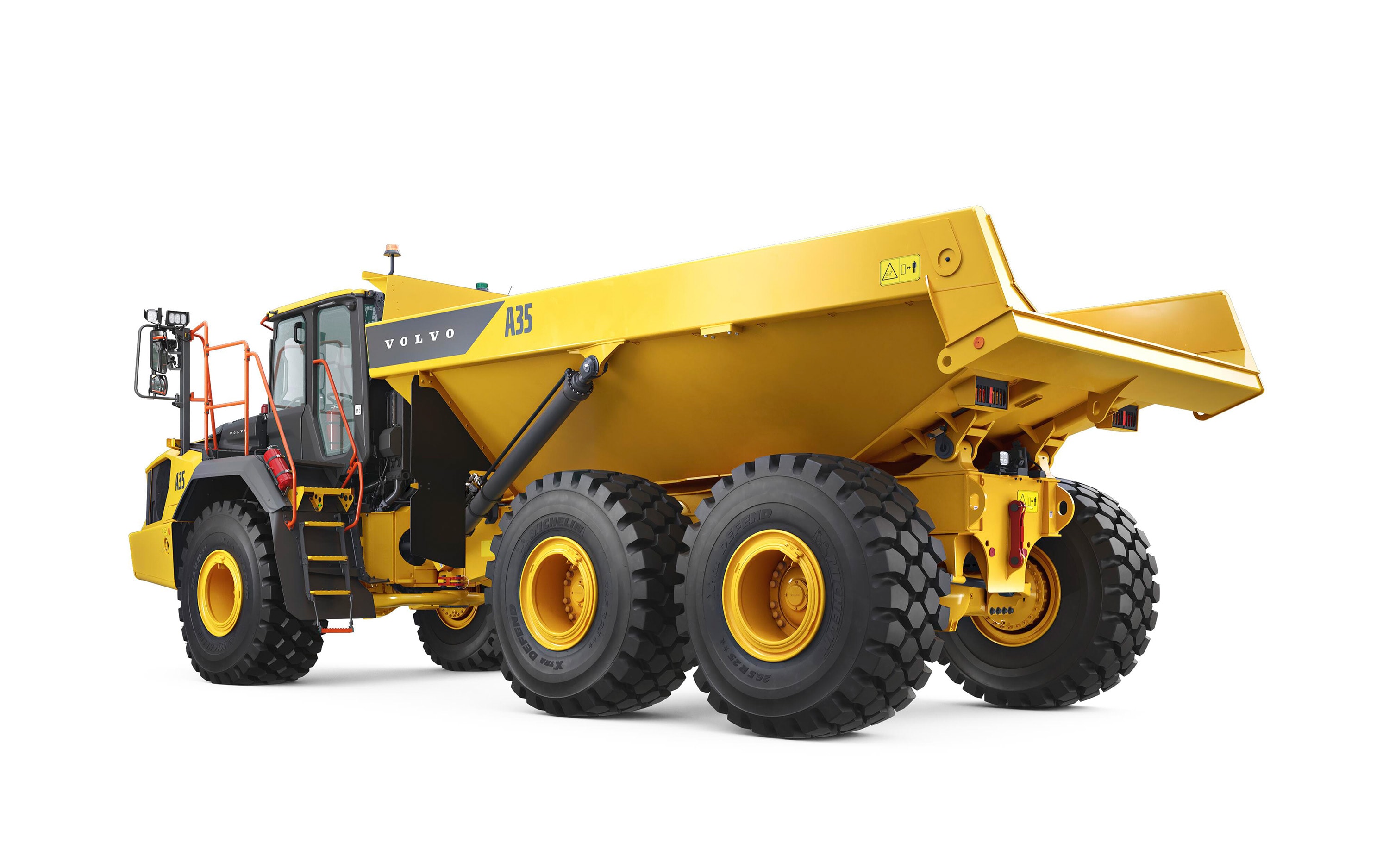

Click a thumbnail below to view larger images.
| Pay Load (kg) | 34500 |
| Load Cap. (m3) | 21,3 |
| Net Machine weight (kg) | 29900 |
| Gross Machine weight (kg) | 64370 |
| Engine | D13 |
| Engine- Power (kW) | 336 |
| Engine- Torque (Nm) | 2407 |
| Emission regulations | Stage II, Stage V/Tier4f |
| Transmission/Dropbox | PT2529/IL2 |
| Axles/Brakes | ARBH35/Wet Discs |
| Front Suspension | Rubber or Hydraulic |
| Rear Suspension | Rubber |
| Tire (wide based) | 26.5R25 |
| Tire (Low profile) | 775/65R29 |
| Width - wide based tires (mm) | 3345 |
| Width - low profile tires (mm) | 3553 |
| Top Speed (km/h) | 57 |
| Gradability % (uphill/downhill) | 40/45 |
13 liter, 6-cylinder straight turbocharged diesel engine with 4 valves per cylinder, overhead camshaft and electronically controlled unit injectors. The engine has wet replaceable cylinder liners and replaceable valve guides and valve seats.
All cables, sockets and pins are identified. Cables are enclosed in plastic conduits and secured to main frame. Prewired for options. Connectors meet IP67 standard for water-proofing as necessary.
Fully hydraulic, wet multiple disc brakes with enclosed, forced oil-cooled multiple discs on all wheels. Two circuit brake system. Complies with ISO 3450 at total machine weight.
Mounted on rubber pads. Ergonomically designed. Unobstructed wide angle forward view. Operator centrally positioned above the front axle. ergonomically positioned controls. Electronic controled climate unit with automatice controled temperature and functionality with high thermal comfort and clean air.
Four variable displacement piston pumps driven by the flywheel PTO. Two load-sensing used for steering and tipping and two electrical controlled used for fan, brake cooling and brake power supply. One ground-dependent piston pump for secondary steering mounted on the dropbox. Two return oil filters with magnetic cores provide effective oil filtration.
Front suspension: Three point suspension consisting of a-stay fitted to the frame structure by a spherical rubber bushing, shock absorbers with accumulators and cross stays.
 |
 |
 |
 |
|
| Model | A35 | A40 | A45 | A50 |
| Pay Load (kg) | 34500 | 39000 | 42000 | 45000 |
| Load Cap. (m3) | 21,3 | 24,0 | 25,5 | 27,8 |
| Net Machine weight (kg) | 29900 | 31400 | 32300 | 33600 |
| Gross Machine weight (kg) | 64370 | 70310 | 74300 | 78590 |
| Engine | D13 | D13 | D16 | D16 |
| Engine- Power (kW) | 336 | 350 | 365 | 385 |
| Engine- Torque (Nm) | 2407 | 2525 | 2600 | 2750 |
| Front Suspension | Rubber or Hydraulic | Rubber or Hydraulic | Rubber or Hydraulic | Hydraulic |
| Rear Suspension | Rubber | Rubber | Rubber | Hydraulic |
| Width - wide based tires (mm) | 3345 | 3400 | 3400 | - |
| Width - low profile tires (mm) | 3553 | 3570 | 3570 | 3570 |
