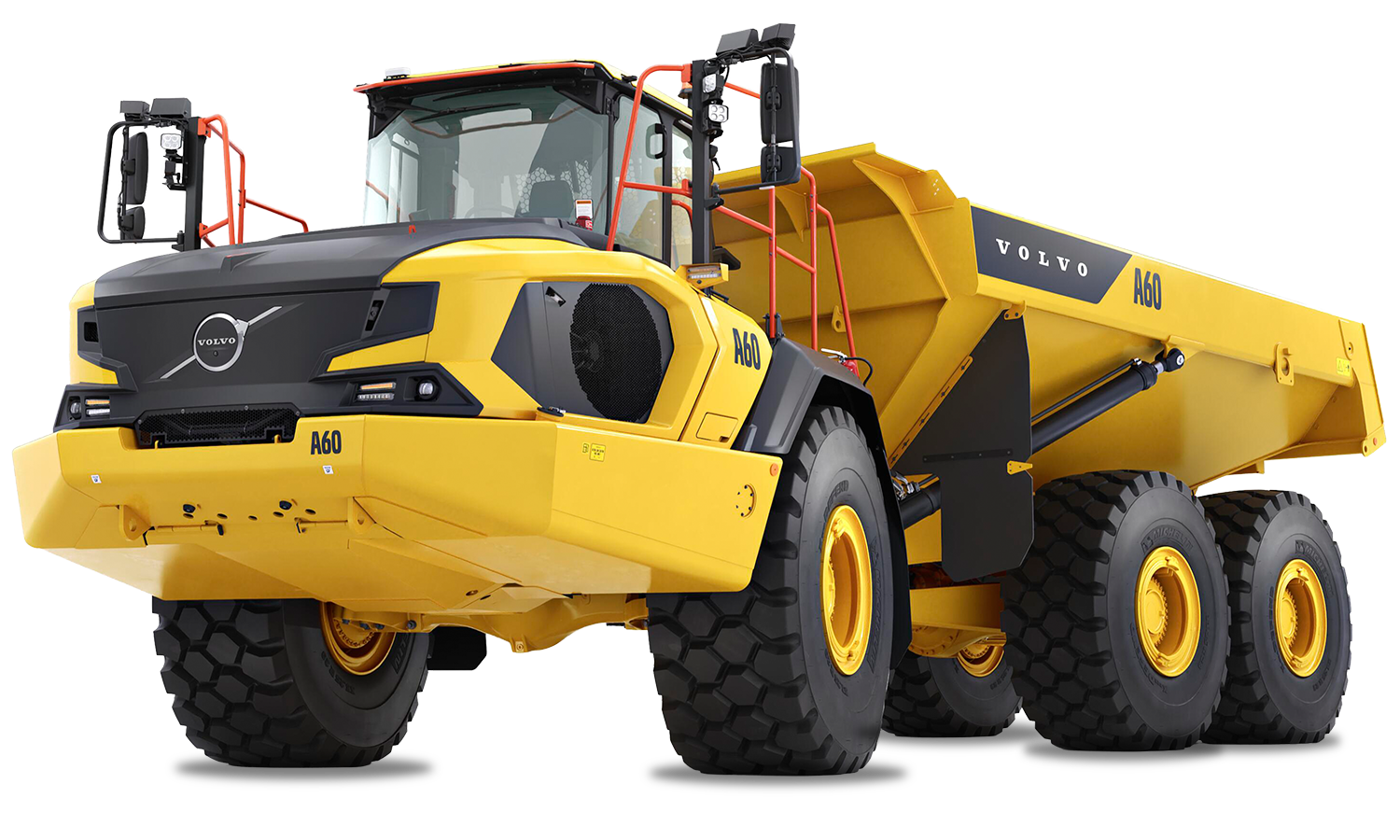

With a new Volvo powertrain, Volvo quality runs throughout every element of the A60, with the new transmission and axles enabling full power to be utilized in all gears. The result is up to 15% more fuel efficiency and 5% more productivity. With the addition of proven Volvo features such as OptiShift - which enables faster directional changes when moving between forwards and reverse - automatic traction control and the intelligent Terrain Memory* function, which identifies and remembers slippery road segments to ensure optimized traction control and outstanding off-road mobility. Get ready for more fuel efficiency, more productivity and Volvo-renowned quality and reliability throughout.
* In markets with CareTrack

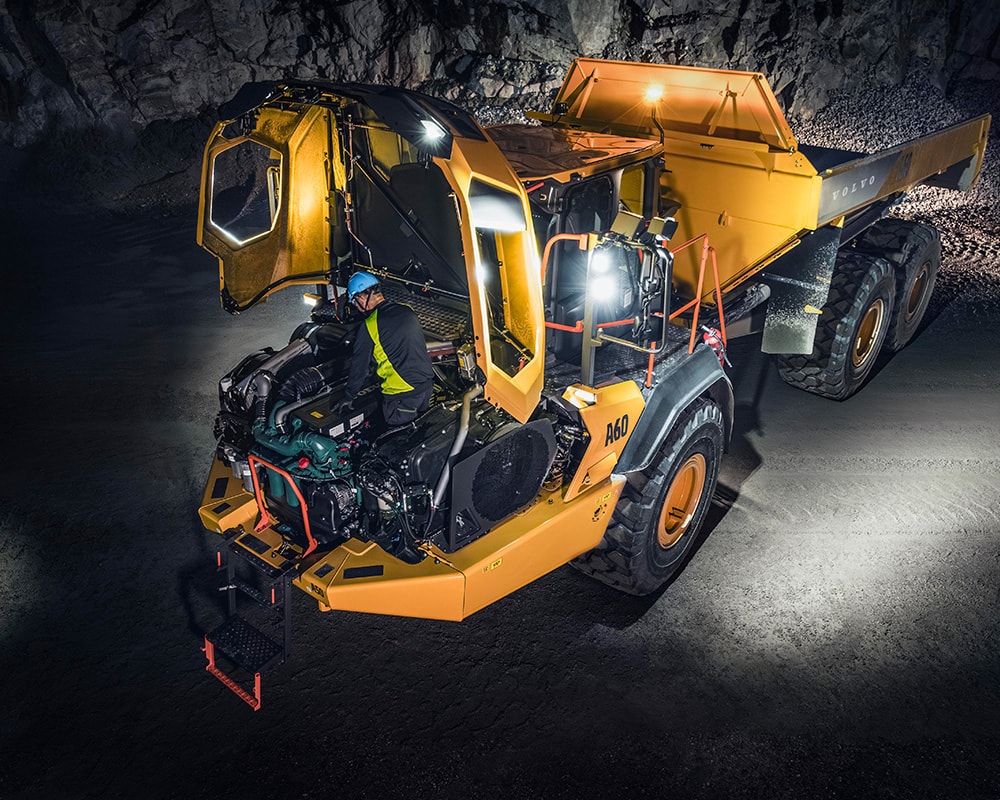

Keep service costs to a minimum thanks to simplified servicing, longer change intervals and easy component access. Servicing your machine is quick and easy thanks to industry leading service access and essential maintenance points accessible from the ground. What's more, eliminate daily or weekly greasing thanks to industry leading greasing intervals of 250 hours for maximum uptime.
Reduce service costs by up to 5% over 12 000-hours of operation thanks to simplified servicing, longer change intervals and easy component access. Benefit from industry leading greasing intervals of 250 hours for maximum uptime.

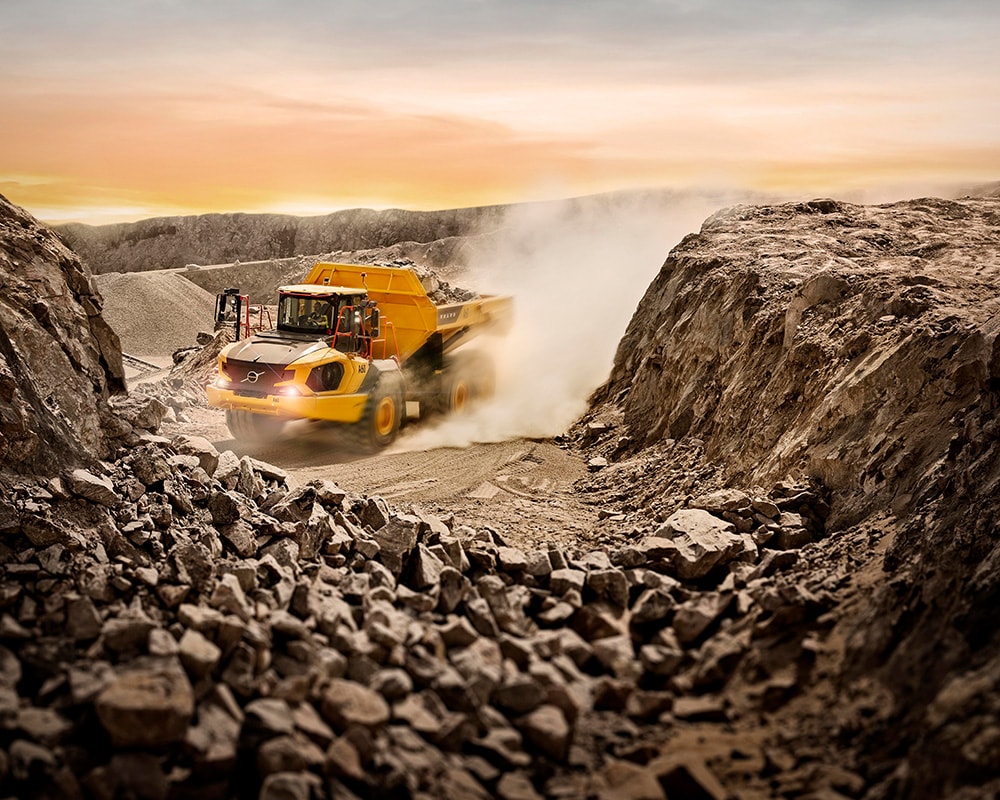

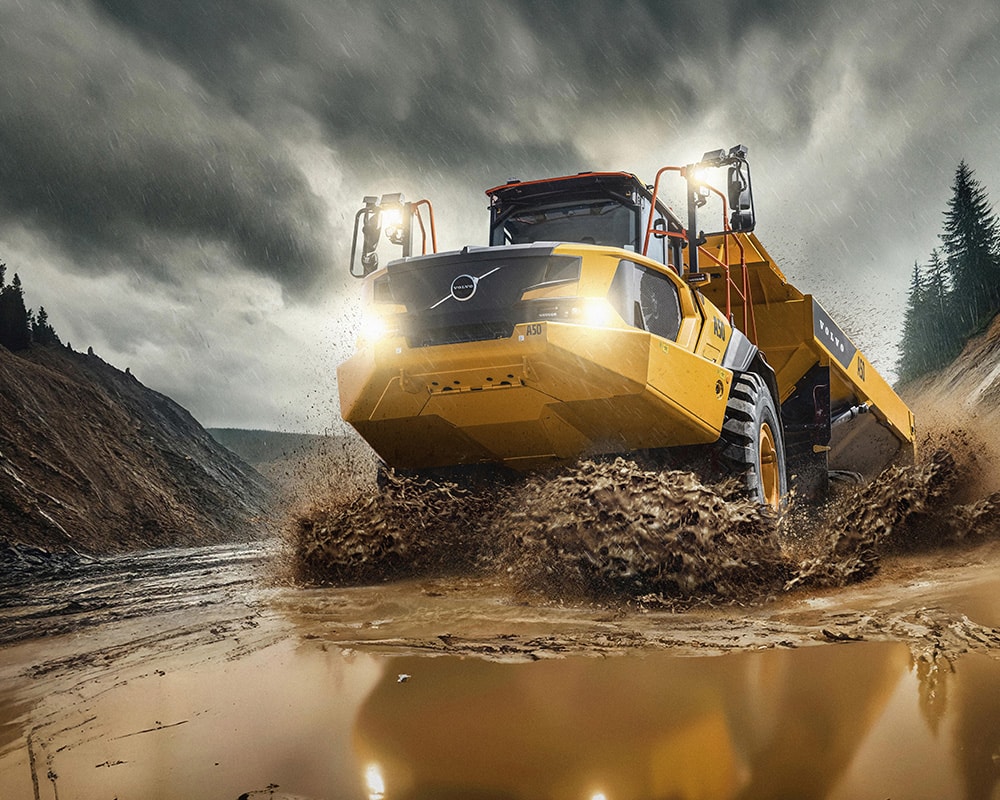

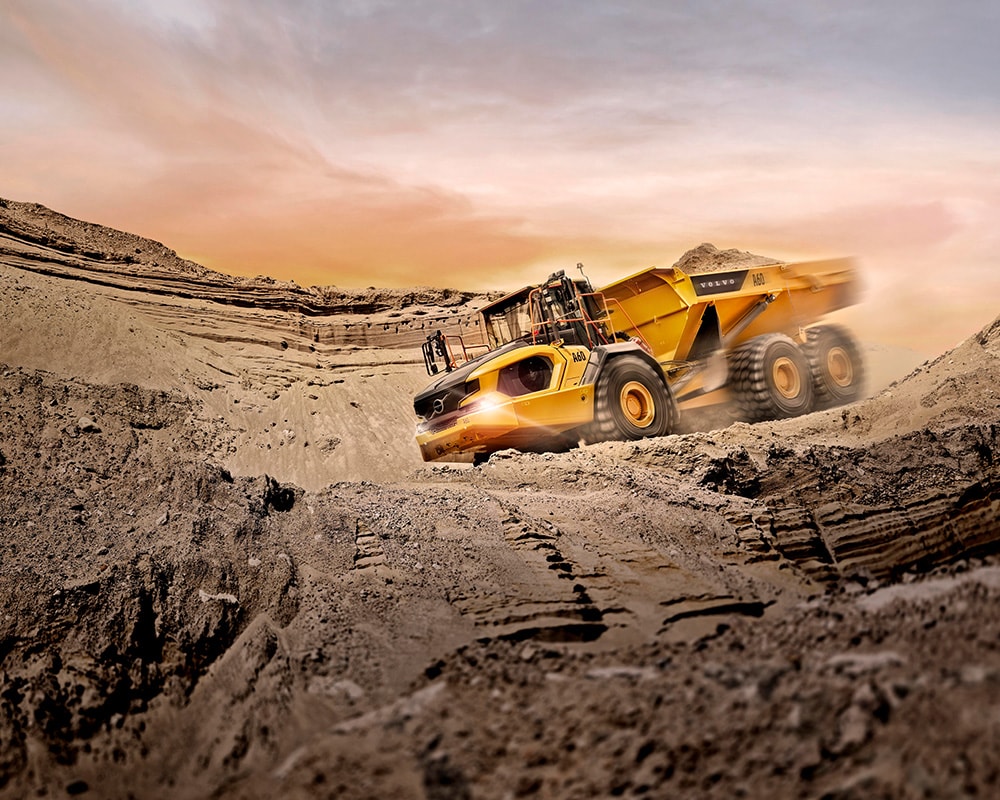

Go where other 60-tonne machines cannot, in all seasons, terrains and applications, thanks to the unbeatable off-road performance of the A60. Fitted with active hydraulic front suspension, enabling high hauling speeds in the toughest conditions, the A60 features proven Volvo drivetrain, automatic drive combinations (including 100% differential locks), all-terrain bogie and hydro-mechanical steering for unmatched traction, stability and precision control. With Volvo Dynamic Drive, dynamic and predictive gear selection adapts to the operating conditions at hand, for improved comfort and fuel efficiency. What's more, the intelligent design is optimized for maximum efficiency in high payload applications, with outstanding tipping stability for safe and productive operations.

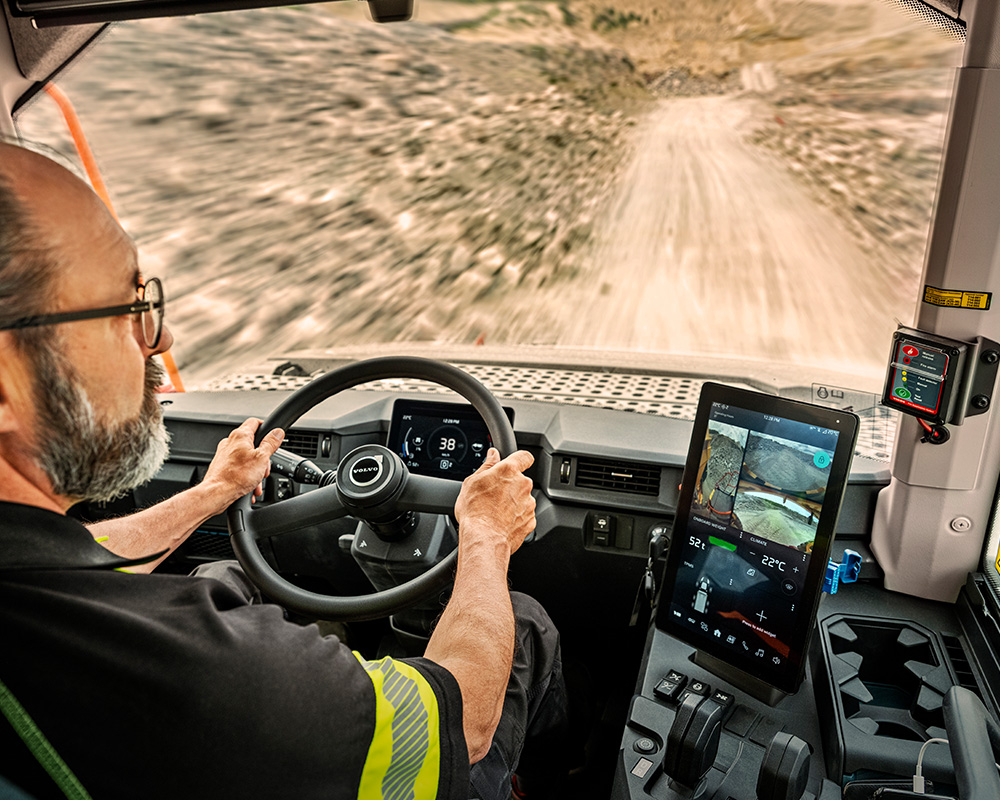

Operators can stay in-the-know and focussed on the task at hand thanks to all essential in-cab information conveniently displayed on two screens. The interactive, integrated Volvo Co-Pilot display offers easy control over essential functions such as media, camera settings, climate control, and machine status. This is combined with the dynamic instrument cluster, positioned in front of the steering wheel, which provides essential vehicle data at-a-glance.
Take on the most challenging work environments and off-road conditions in the A60 thanks to the reinforced axles, which withstand heavier loads, higher levels of torque and stress. The added strength and stability provided by the axles contributes to higher uptime, reduced wear, longer service intervals and lower maintenance costs.

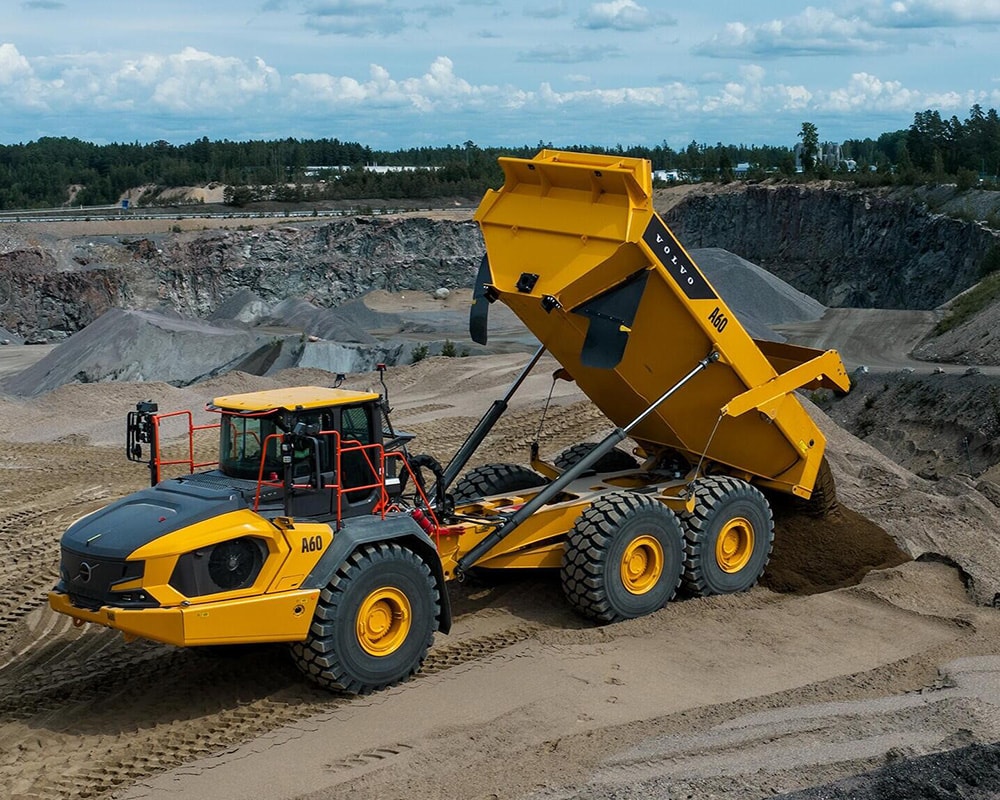

Features including hill assist, cruise control, downhill speed control, load and dump brake and dynamic Volvo Engine Brake help operators achieve optimum results all day, every day.
Click a thumbnail below to view larger images.
| Pay Load (kg) | 55000 |
| Body volume, SAE 2:1 heap (m3) | 33.6 |
| Net Machine weight (kg) | 43400 |
| Gross Machine weight (kg) | 98400 |
| Engine | Volvo D16F |
| Engine- Power (kW) | 495 |
| ...at engine speed (rpm) | 1800 |
| Engine- Torque (Nm) | 3200 |
| ...at engine speed (rpm) | 1050 |
| Max speed (km/h) | 55 |
16 liter, 6-cylinder straight turbocharged diesel engine with 4 valves per cylinder, overhead camshaft and electronically controlled unit injectors. The engine has wet replaceable cylinder liners and replaceable valve guides and valve seats.
All cables, sockets and pins are identified. Cables are enclosed in plastic conduits and secured to main frame. LED head- and work lights. Prewired for options. Connectors meet IP67 standard for water-proofing as necessary.
Fully hydraulic, wet multiple disc brakes with enclosed, forced oil-cooled multiple discs on all wheels. Two circuit brake system. Complies with ISO 3450 at total machine weight.
The Volvo cab features excellent all-around visibility created by a centrally positioned operator station, sloping hood, large rear-view mirrors and entrance camera. The one piece wide front windshield with large swipe area further enhances visibility. The central instrument cluster, the integrated Co-pilot, gearshift lever, tipping lever and easy to reach switches ensure ease of operation.
Five variable displacement piston pumps driven by the flywheel PTO. One ground-dependent piston pump for secondary steering mounted on the dropbox. Two return oil filters with magnetic cores provide effective oil filtration.
Front suspension: Unique, full hydraulic, with automatic leveling and stabilizer. Rear suspension: 100% maintenance free. Straddle mounted bogie beam. Independent wheel movement via a 3-point mounting system.
 |
 |
 |
|
| Model | A45 | A50 | A60 |
| Pay Load (kg) | 42000 | 45000 | 55000 |
| Load Cap. (m3) | 25.5 | 27.8 | 33.6 |
| Net Machine weight (kg) | 32300 | 33600 | 43400 |
| Gross Machine weight (kg) | 74300 | 78590 | 98400 |
| Engine | D16 | D16 | D16F |
| Engine- Power (kW) | 365 | 385 | 495 |
| Engine- Torque (Nm) | 2600 | 2750 | 3200 |
