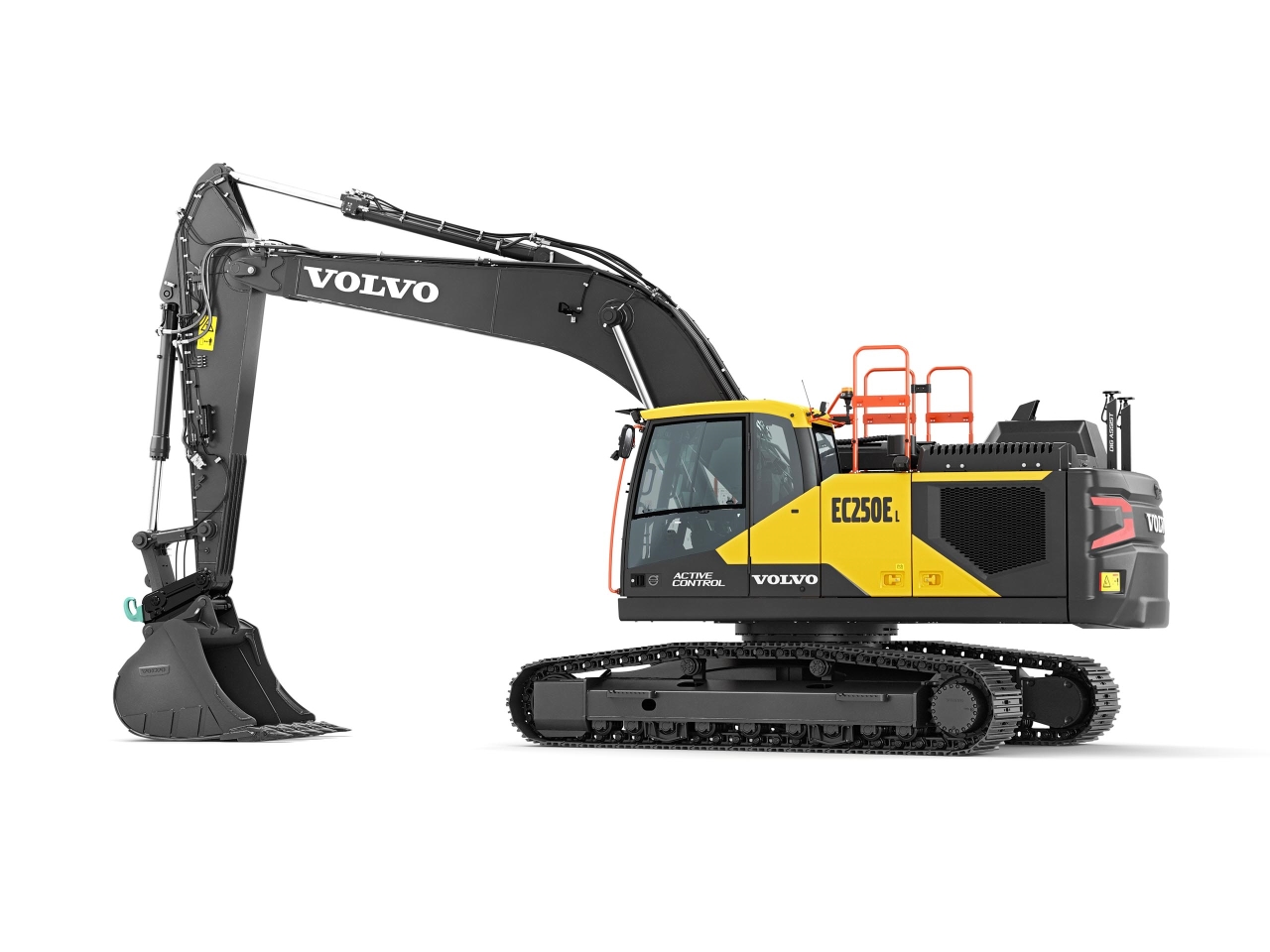

Volvo EC250E Hybrid Excavator

  • Operating Weight27150 kg
  • Horse Power225 hp
  • KW168 kW

Please note: all fields are required to enable your query to be directed to your local TDX expert. Cancel

Contact details:
Your query:


* Please check the "I'm not a robot" box above to continue.
Description

Description - Volvo EC250E Hybrid Excavator

Simple solution, big savings

Introducing the new EC250E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor, which powers the engine system.

The EC250E Hybrid crawler excavator utilizes pioneering Volvo hydraulic hybrid technology to improve fuel efficiency by up to 17%. Using the boom down motion to charge the accumulator, the excavator uses this stored energy to drive the assist motor which powers the engine system. Save big on fuel while benefitting from the power and performance of a conventional EC250E.

*Efficiency and savings may vary based on operator, application and conditions.

Calculate your savings

Overview of Volvo Hybrid excavators

Features

Features - Volvo EC250E Hybrid Excavator

Image alt tab

17% greater fuel efficiency *

Image alt tab

15% lower fuel consumption *

Image alt tab

15% reductions in CO2 emmisions *

Image alt tab

100% Volvo engineered hydraulic hybrid.

Specifications

Specifications - Volvo EC250E Hybrid Excavator

Operating weight 27,150 - 28,310 kg

Gross power 168 kW (225hp), @ 1,600rpm

Bucket capacity 0.56 - 1.76 m³

Max. digging reach 10,3400 mm

Max. digging depth 7,060 mm

Breakout force, SAE J1179 (Normal) 145 kN

Breakout force, SAE J1179 (Boost) 157 kN

Tear out force, SAE J1179 (Normal) 114 kN

Tear out force, SAE J1179 (Boost) 124 kN

Tail swing radius 3,075 mm
