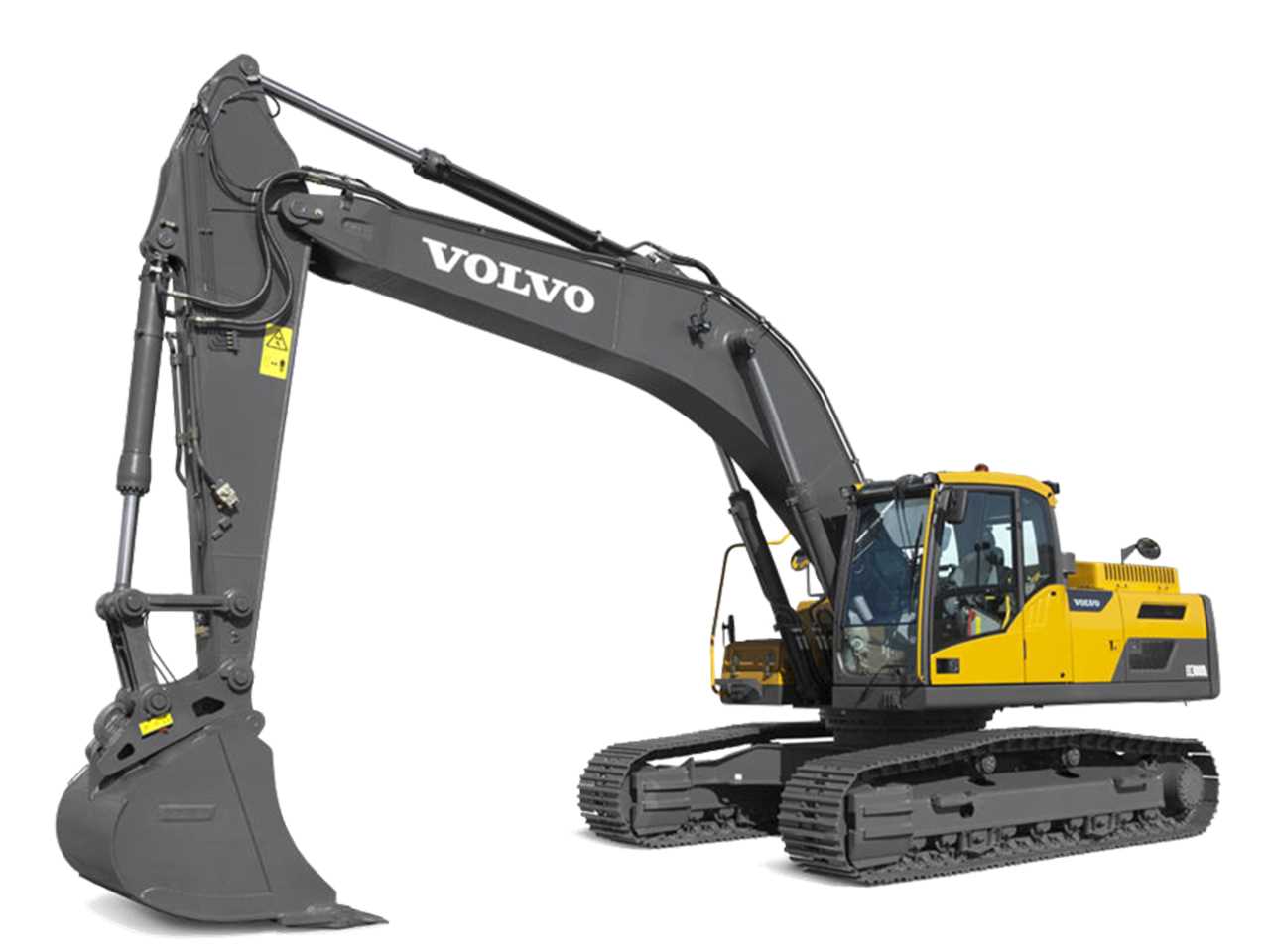

Volvo EC300DL Crawler Excavator

  • Operating Weight27700 kg
  • Horse Power228 hp
  • KW170 kW

Please note: all fields are required to enable your query to be directed to your local TDX expert. Cancel

Contact details:
Your query:


* Please check the "I'm not a robot" box above to continue.
Description

Description - Volvo EC300DL Crawler Excavator

The Volvo EC300DL crawler excavator is built to increase your production, reduce your fuel consumption and to reach the highest levels of efficiency. Fitted with Volvo's award winning ECO mode, the EC300DL offer customers up to a 10% increase in fuel efficiency compared to the previous model.

Features

Features - Volvo EC300DL Crawler Excavator

Image alt tab

Easy service Access - Ground access via the side door, ensuring easy and simple service checks. For maximum efficiency, the single layer cooling system includes the radiator, charged air cooler and hydraulic oil cooler, which are situated side-by-side

Image alt tab

Well-positioned punched anti-slip plates provide superior grip and durability. The design facilitates easy cleaning while promoting safety.

Multiple sturdy handrails also provide safe and easy access to the superstructure for inspection and maintenance.

Image alt tab

Work efficiently and profitably with Volvo's intelligent ECO mode.

This feature contributes to the machine's total improved fuel efficiency –without any loss of performance. The design optimizes flow and pressure while maintaining digging power and swing torque. Choose the right work setting for the job at hand.

Image alt tab

We know that when operators are comfortable they experience less fatigue and work more productively. That's why the new, modern styling of the D-series cab provides superior visibility, a safe and spacious working environment and easy to access controls – right where you'd want them.

Specifications

Specifications - Volvo EC300DL Crawler Excavator

  • Operating weight 27,700 - 33,100 kg
  • Gross power 170 kW (228hp) @ 1,800rpm
  • Bucket capacity 0.52 - 2.02 m³
  • Lifting capacity, along undercarriage 11,020 kg, at reach / height 6 / 1.5 m
  • Max. digging reach 10,720 mm
  • Max. digging depth 7,350 mm
  • Breakout force, SAE J1179 (Normal) 168 kN
  • Breakout force, SAE J1179 (Boost) 182 kN
  • Tear out force, SAE J1179 (Normal) 132 kN
  • Tear out force, SAE J1179 (Boost) 143 kN
  • Overall width 3,190 mm
  • Tail swing radius 3,120 mm
