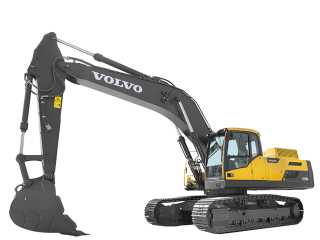

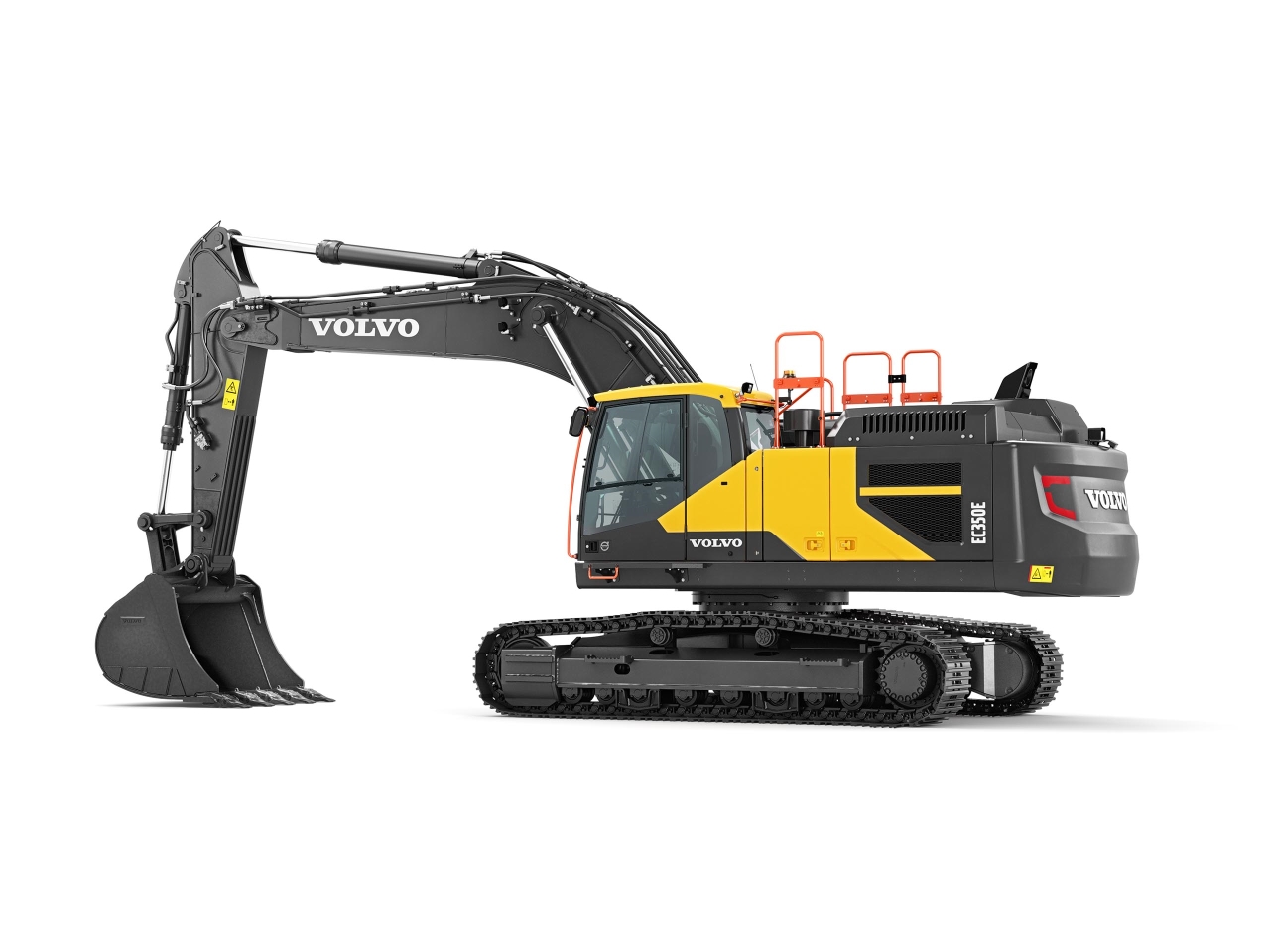

Volvo EC350E Hybrid Excavator
- Operating Weight36260 kg
- Horse Power295 hp
- KW220 kW
Simple solution, big savings
Introducing the new EC350E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor, which powers the engine system.
The EC350E Hybrid crawler excavator utilizes pioneering Volvo hydraulic hybrid technology to improve fuel efficiency by up to 17%. Using the boom down motion to charge the accumulator, the excavator uses this stored energy to drive the assist motor which powers the engine system. Save big on fuel while benefitting from the power and performance of a conventional EC350E.
*Efficiency and savings may vary based on operator, application and conditions.
17% greater fuel efficiency *
15% lower fuel consumption *
15% reductions in CO2 emmisions *
100% Volvo engineered hydraulic hybrid.
Operating weight 36,260 - 38,290 kg
Gross power 220 kW (295hp), @ 1,600rpm
Bucket capacity 0.87 - 2.33 m³
Max. digging reach 11,123 mm
Max. digging depth 7,490 mm
Breakout force, SAE J1179 (Normal) 177 kN
Breakout force, SAE J1179 (Boost) 192kN
Tear out force, SAE J1179 (Normal) 201 kN
Tear out force, SAE J1179 (Boost) 219 kN
Tail swing radius 3,600 mm
